DESCRIPTION

• Overview
• Product Description
• Product Parameters
• Detailed Photos
• related products
• Company Profile
• Certifications
• Packaging & Shipping
• FAQ

Overview

Basic Info.

Certification	CE
Manufacturing Technology	Optoelectronic Semiconductor
Model	MD90
Package	BGA
Signal Processing	Digital
Mounting Type	Standard
Description	Rectifier Diode Switching Diode SCR Diode
Package Type	Surface Mount/Through Hole
Package / Case	Standard
Media Available	Datasheet, Photo
Max. Reverse Voltage	4500V
Max. Forward Current	200A
Max. Reverse Current	200A
Diode Type	SCR Diode
Technology	Standard
Voltage - Peak Reverse (Max)	6500V
Current - Reverse Leakage @ Vr	5mA
Speed	Not Applicable
Our Products	Bridge Rectifier Diode
Service	Components
Transport Package	Standard Package
Trademark	PowerPassion
Origin	China
HS Code	8504409999
Production Capacity	60000pieces/Year

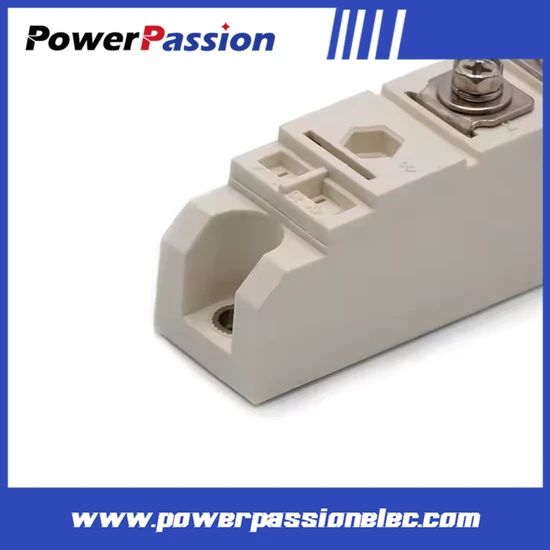

Product Description

please click here to submit your inquiry details!

Product Description

• High Voltage Capability: Discover the unparalleled performance of the High Volta MD90 Switching Diode, engineered to excel in high voltage applications. With an impressive maximum peak reverse voltage of 6500V, this diode is the ultimate choice for demanding inverter systems, delivering reliability and efficiency like never before.

• High Power Dissipation: Experience the power and efficiency of the MD90 Switching Diode, designed to meet high power demands with ease. Boasting a remarkable maximum power dissipation range of 1W-3W, it is the ideal component for power rectification and switching circuits, seamlessly managing high power requirements across diverse applications.

• Wide Operating Temperature Range: Ensure dependable performance with the MD90 Switching Diode, capable of operating across a broad temperature spectrum from -40°C to 125°C. This resilience guarantees consistent functionality even in the most demanding and harsh environmental conditions.

• Low Reverse Leakage Current: The MD90 Switching Diode stands out with its minimal reverse leakage current of 5mA, effectively reducing power loss and heat generation within your circuits. This feature enhances overall efficiency, making it a smart choice for your technological needs.

• Datasheet and Photo Available: For comprehensive design and integration support, the MD90 Switching Diode comes with a detailed datasheet and a high-quality photo. These resources provide critical insights and information, tailored to meet your specific engineering requirements.

please click here to submit your inquiry details!
Normal working conditions and installation conditions 1. Self-cooling and air-cooled ambient temperature -40 °C ~ 40 °C, ensuring optimal performance under varied thermal conditions. Water-cooled ambient temperature 5 °C ~ 40 °C, providing stability and efficiency in regulated cooling environments. 2. Relative humidity of air ≤ 85% guarantees reliable operation in humid conditions, maintaining device integrity. 3. Absence of corrosive gases and insulation-destroying dust ensures longevity and safety for sustained use. 4. Air pressure 85Kpa-106Kpa, accommodating varying atmospheric conditions to maintain performance. 5. Free from severe vibration and shock, safeguarding the device from mechanical stress and ensuring consistent output. 6. Special occasions may require specific experiments to verify reliable operation, demonstrating adaptability to unique circumstances. 7. For forced air cooling: wind speed ≥6m/s, air temperature ≤40°C, guaranteeing efficient heat management. 8. Water cooling: flow rate ≥ 4L / min, water pressure: 0.2 ± 0.03Mpa, water resistivity ≥ 20kΩ, ensuring effective cooling and stable performance in water-cooled systems.
please click here to submit your inquiry details!

Normal working conditions and installation conditions

1. Self-cooling and air-cooled ambient temperature -40 °C ~ 40 °C,

water-cooled ambient temperature 5 °C ~ 40 °C

2. Relative humidity of air ≤ 85%

3. No corrosive gases in the air and dust that destroys insulation

4. Air pressure 85Kpa-106Kpa

5. No severe vibration and shock

6. If there are special occasions, the corresponding experiment should be carried out to prove that the work is reliable.

7. Forced air cooling: wind speed ≥6m/s, air temperature ≤40°C

8. Water cooling: flow rate ≥ 4L / min, water pressure: 0.2 ± 0.03Mpa, water resistivity ≥ 20kΩ

please click here to submit your inquiry details!

please click here to submit your inquiry details!
please click here to submit your inquiry details!

please click here to submit your inquiry details!

Applications

The Thyristor Power Regulator, also renowned as the SCR power controller, is meticulously crafted to optimize power management. This versatile device finds extensive application across various industrial sectors:

1. Aluminium melting furnaces, where precise temperature control is paramount;

2. Holding furnaces, ensuring consistent thermal environments;

3. Boilers, facilitating efficient heat management;

4. Microwave dryers, enhancing drying processes with precision;

5. Multi-zone drying and curing ovens, providing sophisticated zone-specific control for superior results;

6. Plastic injection moulding systems that demand precise multi-zone heating for manifold moulds;

7. Extrusion processes for plastic pipes and sheets, ensuring uniform output quality;

8. Metal sheets welding systems, optimizing weld integrity and efficiency;

please click here to submit your inquiry details!

OUR REQUIREMENT

Product Parameters

Type	If(AV)	TC	Itsm@Tvjim&10ms	I2t	Vtm@It&Tj=25ºC	Itm@It&Tj=25ºC	Tjm	Rjc	Rc-s
	A	ºC	A	A2s	V	A	ºC	ºC/W	ºC/W
ZP400A/1600V	400	100	4400	9.70E+04	1.35	900	175	0.0800	0.0200
ZP800A/1600V	800	100	8800	3.80E+05	1.30	1500	175	0.0540	0.0100
ZP1300A/1600V	1300	100	14300	1.00E+06	1.25	1500	175	0.0390	0.0080
ZP2500A/1600V	2500	100	27500	3.80E+06	1.35	3000	175	0.0220	0.0050
ZP3200A/1600V	3200	100	35200	6.00E+06	1.30	3000	175	0.0150	0.0045
ZP4600A/1600V	4600	90	50600	1.30E+07	1.15	3000	175	0.0125	0.0040
ZP6000A/1600V	6000	90	66000	2.10E+07	1.15	3000	175	0.0100	0.0030
Type	If(AV)	TC	Itsm@Tvjim&10ms	I2t	Vtm@It&Tj=25ºC	Itm@It&Tj=25ºC	Tjm	Rjc	Rc-s
	A	ºC	A	A2s	V	A	ºC	ºC/W	ºC/W
ZP300A/2400V	300	100	3600	6.50E+04	1.40	900	175	0.0800	0.0200
ZP600A/2400V	600	100	7200	2.60E+05	1.40	1500	175	0.0540	0.0100
ZP1100A/2400V	1100	100	13200	8.70E+05	1.30	1500	175	0.0390	0.0080
ZP2000A/2400V	2000	100	24000	2.90E+06	1.45	3000	175	0.0220	0.0050
ZP2500A/2400V	2500	100	30000	4.50E+06	1.40	3000	175	0.0150	0.0045
ZP34000A/2400V	3400	100	40800	8.30E+06	1.25	3000	175	0.0125	0.0040
ZP4400A/2400V	4400	100	52800	1.40E+07	1.20	3000	175	0.0100	0.0030
ZP6500A/2400V	6500	90	78000	3.00E+07	1.25	5000	175	0.0080	0.0020
ZP7500A/2400V	7500	100	90000	4.00E+07	1.15	3000	175	0.0060	0.0015
Type	If(AV)	TC	Itsm@Tvjim&10ms	I2t	Vtm@It&Tj=25ºC	Itm@It&Tj=25ºC	Tjm	Rjc	Rc-s
	A	ºC	A	A2s	V	A	ºC	ºC/W	ºC/W
ZP200A/3500V	200	100	2800	4.00E+04	1.55	600	150	0.0800	0.0200
ZP700A/3500V	700	100	9800	4.80E+05	1.95	1500	175	0.0540	0.0100
ZP800A/3500V	800	90	11200	6.20E+05	1.70	1500	150	0.0390	0.0080
ZP1350A/3500V	1350	90	18900	1.70E+06	1.60	3000	150	0.0220	0.0050
ZP2000A/3500V	2000	90	28000	4.00E+06	1.55	3000	150	0.0150	0.0045
ZP2900A/3500V	2900	90	40600	8.00E+06	1.50	3000	160	0.0125	0.0040
ZP3500A/3500V	3500	90	49000	1.20E+07	1.35	3000	160	0.0100	0.0030
ZP5000A/3500V	5000	100	70000	2.40E+07	1.35	5000	175	0.0080	0.0020
ZP5800A/2400V	5800	90	81200	3.30E+07	1.20	5000	160	0.0060	0.0015

Type	If(AV)	TC	Itsm@Tvjim&10ms	I2t	Vtm@It&Tj=25ºC	Itm@It&Tj=25ºC	Tjm	Rjc	Rc-s
	A	ºC	A	A2s	V	A	ºC	ºC/W	ºC/W
ZP500A/4500V	500	100	7500	2.80E+05	2.10	1500	150	0.0540	0.0100
ZP640A/4500V	600	100	9600	4.60E+05	1.90	1500	150	0.0390	0.0080
ZP1200A/4500V	1200	100	18000	1.60E+06	2.00	3000	150	0.0220	0.0050
ZP1350A/4500V	1350	100	20250	2.00E+06	1.80	3000	150	0.0150	0.0045
ZP1900A/4500V	1900	100	28500	4.00E+06	1.70	3000	150	0.0125	0.0040
ZP2500A/4500V	2500	100	37500	7.00E+06	1.60	3000	150	0.0100	0.0030
ZP4000A/4500V	4000	100	60000	1.80E+07	1.45	5000	160	0.0080	0.0020
ZP5200A/4500V	5200	90	78000	3.00E+07	1.35	5000	150	0.0060	0.0015
Type	If(AV)	TC	Itsm@Tvjim&10ms	I2t	Vtm@It&Tj=25ºC	Itm@It&Tj=25ºC	Tjm	Rjc	Rc-s
	A	ºC	A	A2s	V	A	ºC	ºC/W	ºC/W
ZP2100A/5200V	2100	100	31500	5.00E+06	1.50	3000	150	0.0100	0.0030
ZP3400A/5200V	3400	90	51000	1.30E+07	1.35	5000	150	0.0080	0.0020
ZP2400A/6500V	2400	100	36000	6.50E+06	1.50	5000	150	0.0080	0.0020
ZP3500A/6500V	3500	100	52500	1.40E+07	1.45	5000	150	0.0060	0.0015
ZP500A/7200V	500	100	7500	2.80E+05	2.00	1500	150	0.0390	0.0080
ZP960A/9200V	960	100	14400	1.00E+06	1.75	1500	150	0.0220	0.0050

Detailed Photos related products please click here to submit your inquiry details! Company Profile

Our operations are the epitome of efficiency and excellence, featuring state-of-the-art in-house equipment, a strategically organized warehouse, and the use of the finest imported raw materials. We proudly utilize top-grade silicon, monocrystalline silicon, and premium aluminum profiles, ensuring our products meet the highest industry standards.

Do you provide after-sales service? Of course, we offer comprehensive after-sales service. If you encounter any issues with our products during use, please feel free to contact us, and we will do our best to solve your problems. Within the warranty period, if there are any quality issues with the product, we will replace or repair it for free.

How can I place an order for your thyristor products?

You can place an order by consulting our sales staff online, sending a purchase order to our email, or calling our order hotline directly.

3.Do you provide samples, and how is the charging handled?

For low-value standard products, we can provide free samples for testing, but the customer is responsible for the shipping costs. High-value product samples come with a discount, which can be discussed on a case-by-case basis.

Do you have SCR Power Regulators products in stock?

We have some conventional models in stock. For specific inventory, please consult our sales staff. For non-stock products, our delivery time is usually 15-30 days.

5.How can one determine if a thyristor is damaged?

You can determine if a thyristor is damaged by checking if there are any anomalies in its forward and reverse blocking voltages. If so, the thyristor may be damaged. For specific products, please consult an engineer for detailed numerical reference and guidance.
