DESCRIPTION

Basic Info.

Model NO.	LWS-4S80A-125
Charging Current	80A
Discharging Current	80A
Type Voltage	12.8V
PCM Size	L135*W90*T8.5mm
Balance Current	36+/-5mA
Type Charging Voltage	14.4V
Balance Voltage	3.60+/-0.025V
Short Circuit Protection Function	Cut Load or Charging Activation
Over Current Protection	15A +-5A
Over Charge Protection	4.25+-0.025V
Over Discharge Protection	2.40+-0.005V
Dielectric	Fr-4
Transport Package	Anti-Static Bag Packaging/ Carton Packaging
Origin	China
HS Code	8536300000
Production Capacity	50000 Pieces /Months

Product Description

1. Product Description

About your products,just tell us the relative voltage/ cells/ current A or equipment etc,we will help to recommend the most suitable products for you.

Product Advantages:

• ^{Supply OEM/ODM and custom service}
• ^{High quality with smart balance function}
• ^{Wholesale price}
• ^{ISO9001/ISO14001/CE/ROHS certificates}
• Fast delivery
• ^{Green product}
• ^{One year warranty}
• ^{Excellent safety performance}
• ^{Short circuit testing passed}
• ^{Overcharge testing passed}
• ^{Over discharge testing passed}
• ^{Original imported :IC from Japan,MOS from USA,Components from Sumsang.}
• ^{1.2m drop testing passed}

About the battery BMS/PCB/PCM

Function: Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit ,temperature detecting protection and auotmatically voltage balance function .

Build with high end electronic components (High End IC and MOSFET ) ,simple structure design will let it have more stable quality working performance , Flexible application ( it can be used for less series battery by leaving some connection pins at empty status ),full set of protection measures let it works well without any infulence from external unexpected accidents.
2. Company Information

3. Packaging & Shipping & Payment

4. FAQ

Q: How many Ampere protection circuit boards should choose?

A: It depends on your load power such as electric motor power please contact the sales or technical support before buying.

Q: What is the distinction between same port wiring and different port wiring?

A: The cathode of charger and load is different for different port wiring , the cathode of charger and load is same for same port wiring and the charging current is equal to the discharge current.

Q: What is the distinction between balance and unbalance function?

A: Equilibrium function is that high voltage cells will be discharged with resistor, waiting for the low voltage cells , to achieve the each cell voltage is consistent , to improve the battery performance for the whole group.

Q: Do you have Minimum Order Requirement (MOQ)?

A: No, We don't have MOQ, Different customer have different requirement ,We can provide various capacity and size is per your requirements,Also ODM / OEM is welcome.

Q: What is your term of payment?

A: PayPal, T/T, L/C,

5. Contact us

Any further questions, Welcome to contact our sales person by sending inquiry . Your satisfaction is our pleasure. Let's Join hands for mutual Benefits!

Shenzhen Li-ion Battery Bodyguard Technology Co.,LTD

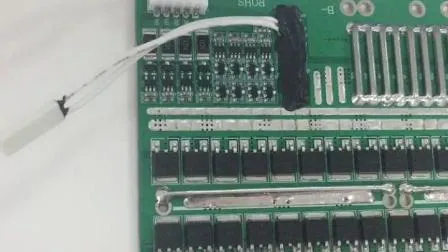

PCM Specifications For 12.8V(4S) LiFePO Battery Packs
Model:LWS-4S80A-125(4S)
No.	Test item		Criterion
1	Voltage	Charging voltage	DC:14.4V 3.6/Cell
		Balance voltage for single cell	3.60±0.025V
2	Current	Balance current for single cell	36±5mA
		Current consumption	≤20μA
		Maximal continuous charging current	80A
		Maximal continuous Discharging current	80A
3	Over charge Protection	Over charge detection voltage for single cell	3.90±0.025V
		Over charge detection delay time	0.5S-2S
		Over charge release voltage for single cell	3.80±0.025V
4	Over discharge protection	Over discharge detection voltage for single cell	2.00±0.05V
		Over discharge detection delay time	10mS-200mS
		Over discharge release voltage for single cell	2.30±0.05V
5	Over current protection	Over current detection voltage	0.10±0.015V
		Over current detection current	50±10A
		Detection delay time	5ms-20ms
		Release condition	Cut load
6	Short protection	Detection condition	Exterior short circuit
		Detection delay time	200-500us
		Release condition	Cut load
7	Resistance	Protection circuitry(MOSFET)	≤20mΩ
8	Temperature	Operating Temperature Range	-40~+65ºC
		Storage Temperature Range	-40~+125ºC
